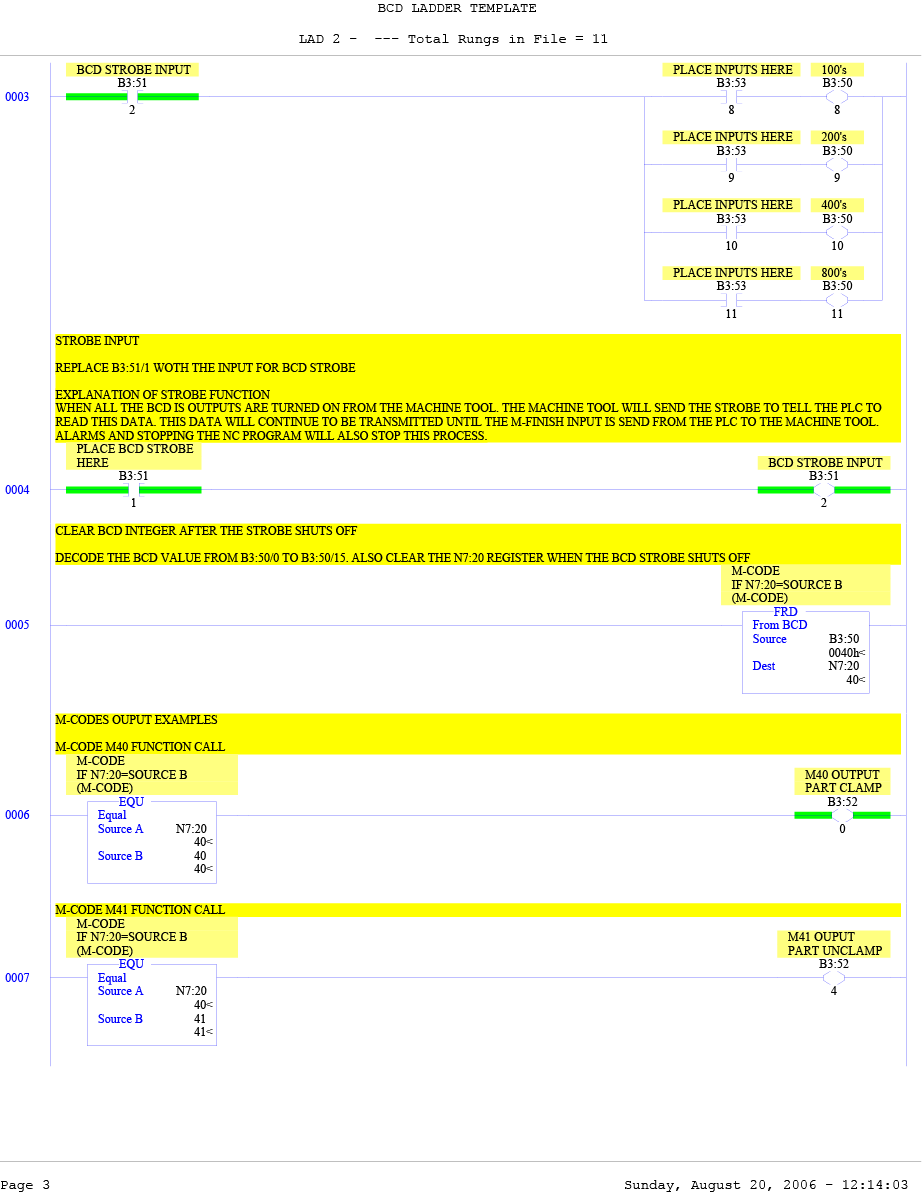

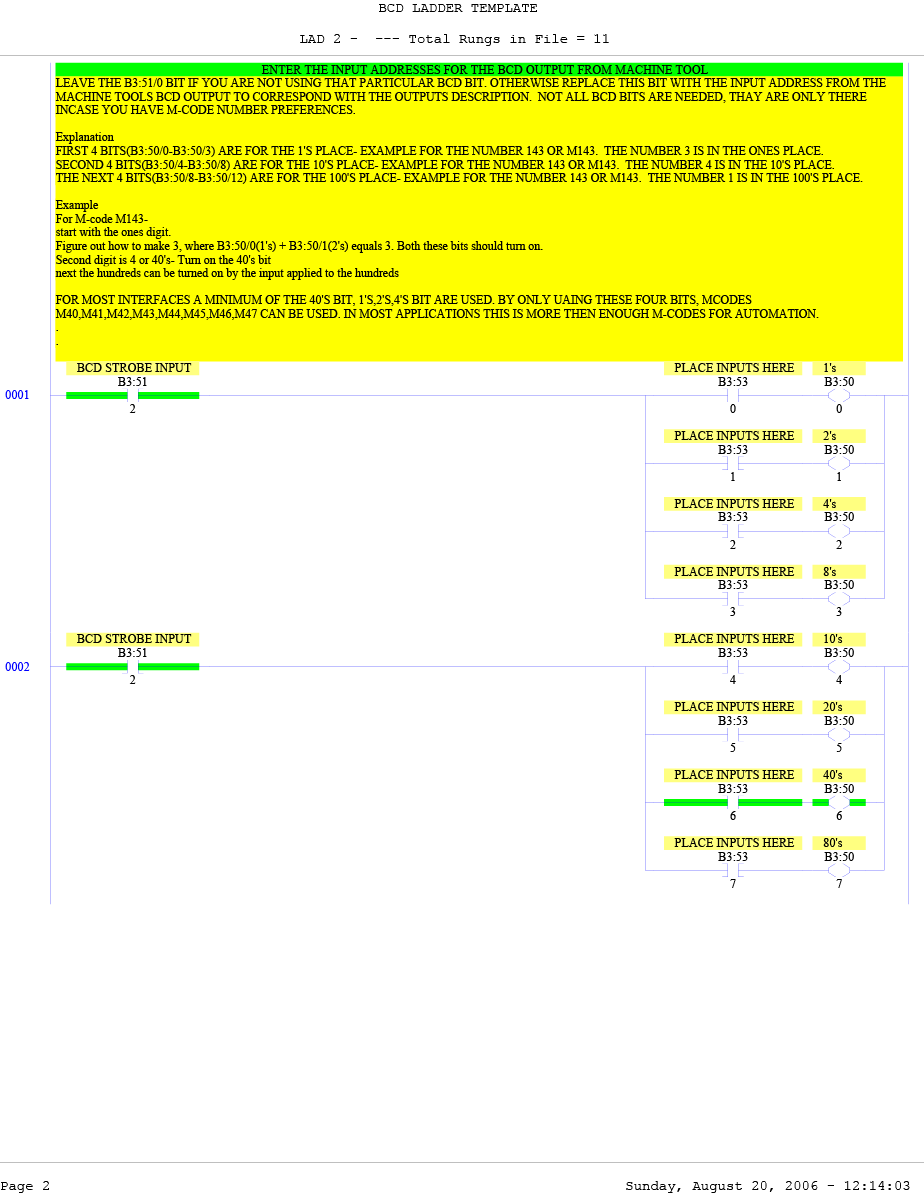

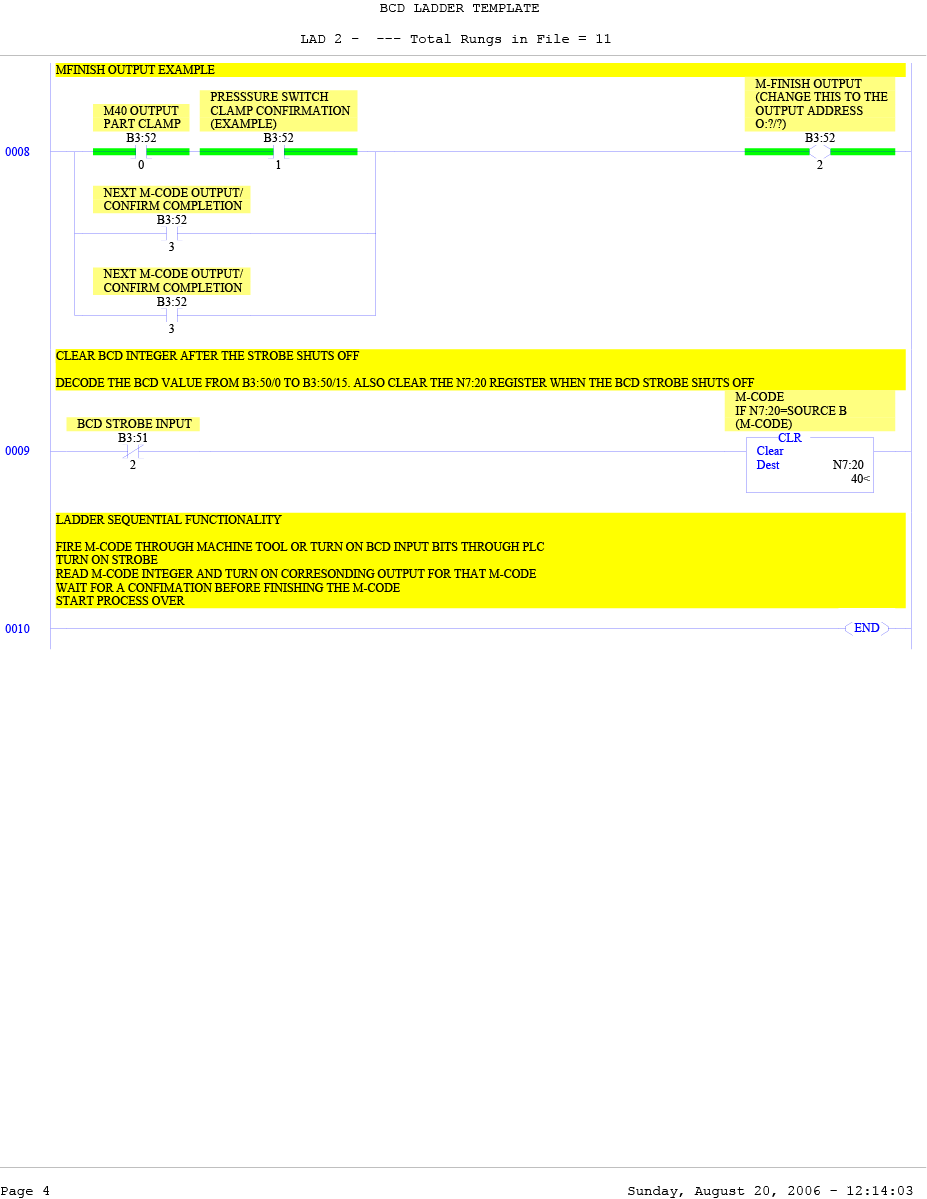

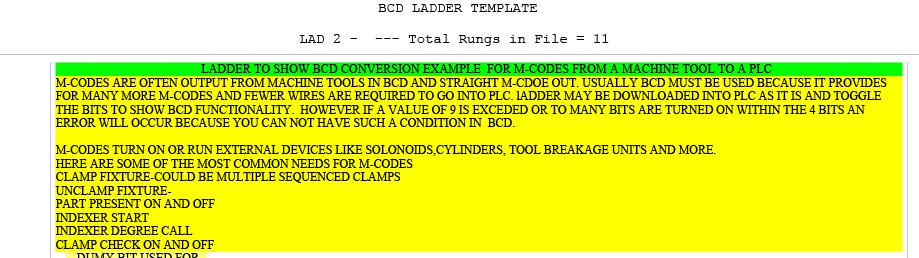

Example of a BCD conversion for M-code logic in typical machine tools using allen bradley PLC ladder software. PLC ladder
|
|
Example of a BCD conversion for M-code logic in typical machine tools using allen bradley PLC ladder software. PLC ladder |
|||
|
|
||
|
|||
|
|||
|
|||
|
|
|||
